Rust and Godot 4

While looking into graphics APIs for Rust, I stumbled across Teaching native graphics in 2023, which made me think that OpenGL is kind of dead, and maybe Vulkan is not the future.

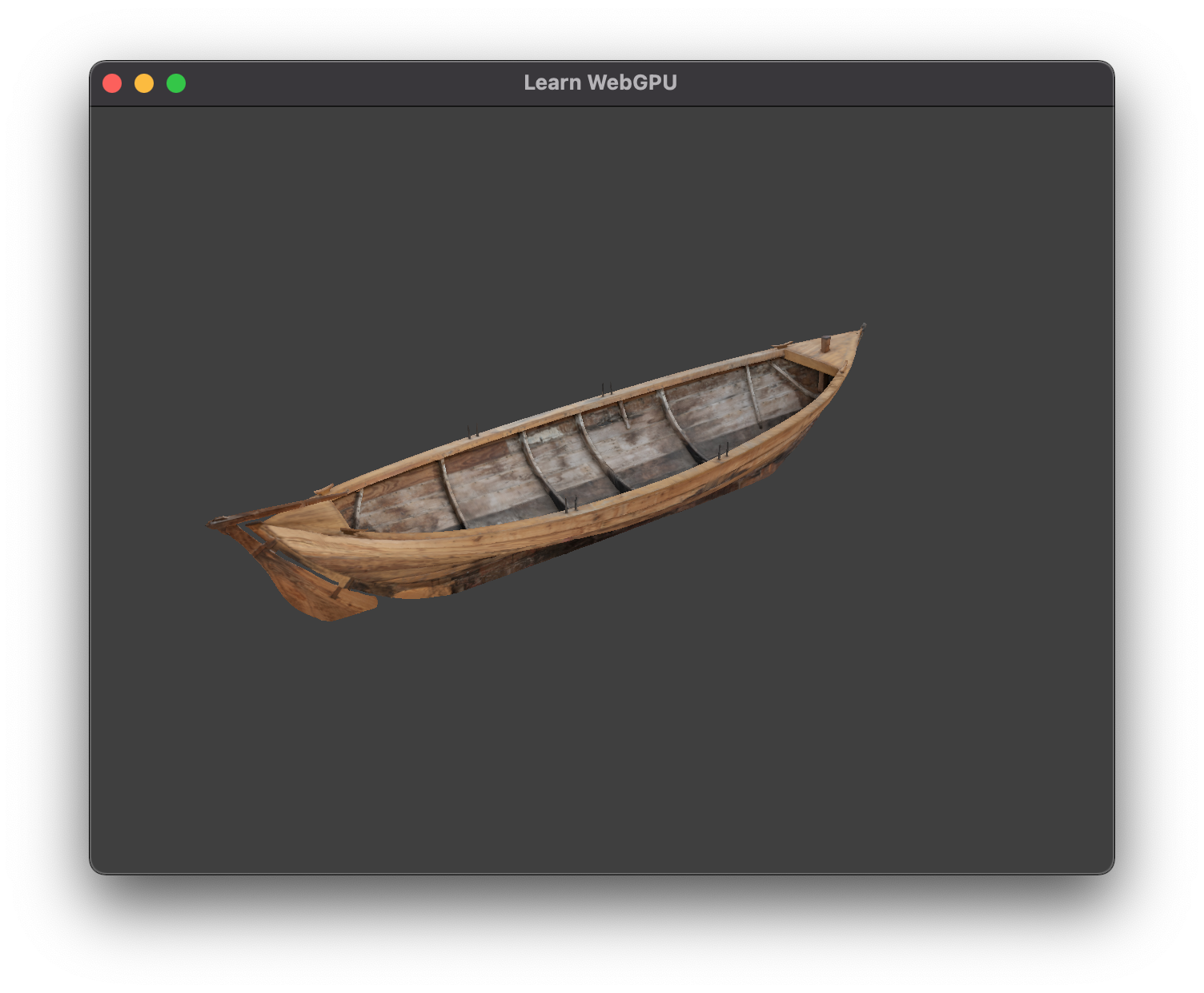

Learning how to use WebGPU in combination with Rust is also an option, but I started to investigate how to do this via C++ first and you can find my current state here, it's based on Learn WebGPU (For native graphics in C++). Currently I'm stuck and therefore I looked at alternatives.

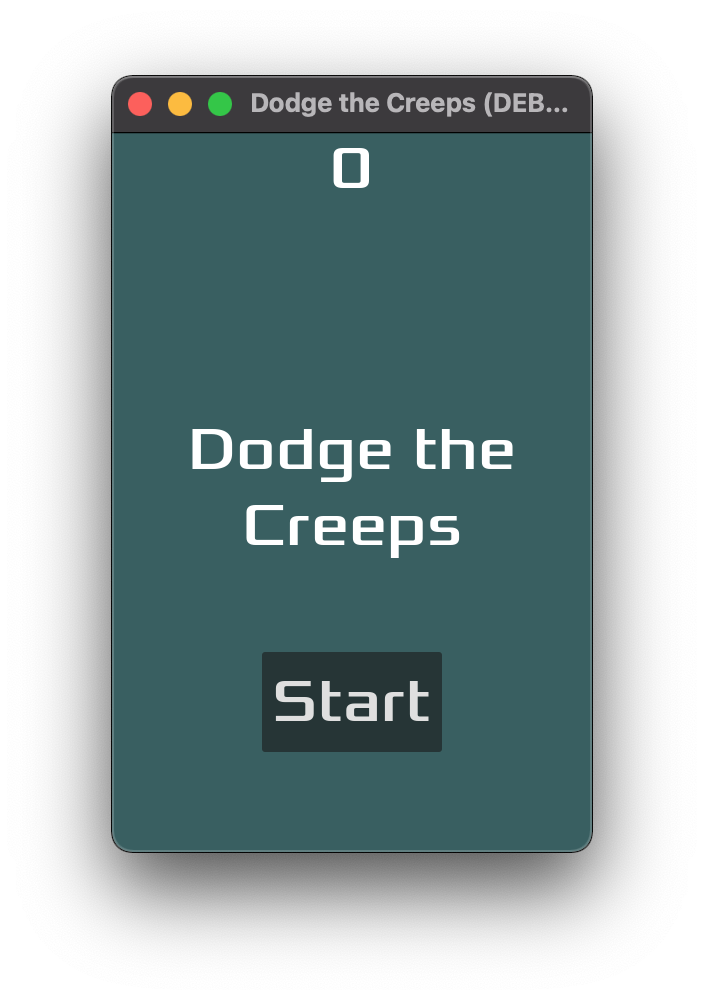

So, what about using Rust within e.g. a game engine, like Godot? Andrej, a friend, suggested the godot-rust project. In the examples folder of gdext (Godot 4 bindings) you find a project dodge-the-creeps (using Rust) which is pretty similar to the Your first 2D game chapter of the Godot Engine 4.1 documentation. Let's first look at the User Interface (UI) of the 2D game:

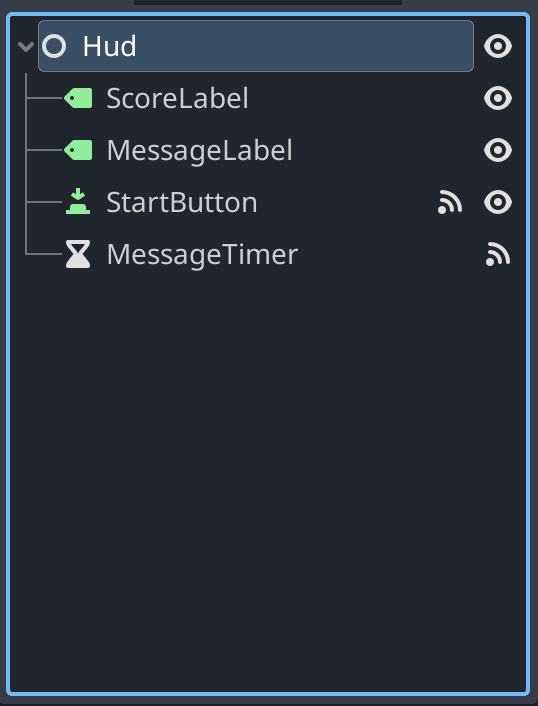

It consists of two Labels (score on top, message in the middle), one Button (start at bottom), and a Timer.

The GDScript version mentioned in the Godot Engine 4.1 documentation looks like this:

extends CanvasLayer

# Notifies `Main` node that the button has been pressed
signal start_game

# Called when the node enters the scene tree for the first time.
func _ready():
	pass # Replace with function body.


# Called every frame. 'delta' is the elapsed time since the previous frame.
func _process(delta):
	pass

func show_message(text):
	$Message.text = text
	$Message.show()
	$MessageTimer.start()

func show_game_over():
	show_message("Game Over")
	# Wait until the MessageTimer has counted down.
	await $MessageTimer.timeout

	$Message.text = "Dodge the\nCreeps!"
	$Message.show()
	# Make a one-shot timer and wait for it to finish.
	await get_tree().create_timer(1.0).timeout
	$StartButton.show()

func update_score(score):
	$ScoreLabel.text = str(score)

func _on_message_timer_timeout():
	$Message.hide()

func _on_start_button_pressed():
	$StartButton.hide()
	start_game.emit()

So, how does that translate to Rust? There are no classes in Rust, therefore extends CanvasLayer becomes:

use godot::engine::{Button, CanvasLayer, CanvasLayerVirtual, Label, Timer};
use godot::prelude::*;

#[derive(GodotClass)]
#[class(base=CanvasLayer)]
pub struct Hud {
    #[base]
    base: Base<CanvasLayer>,
}
...
#[godot_api]
impl CanvasLayerVirtual for Hud {
    fn init(base: Base<Self::Base>) -> Self {
        Self { base }
    }
}

The functions which are not empty (calling just pass) translate like this to Rust:

#[godot_api]
impl Hud {
    #[signal]
    fn start_game();

    #[func]
    pub fn show_message(&self, text: GodotString) {
        let mut message_label = self.base.get_node_as::<Label>("MessageLabel");
        message_label.set_text(text);
        message_label.show();

        let mut timer = self.base.get_node_as::<Timer>("MessageTimer");
        timer.start();
    }

    pub fn show_game_over(&self) {
        self.show_message("Game Over".into());

        let mut message_label = self.base.get_node_as::<Label>("MessageLabel");
        message_label.set_text("Dodge the\nCreeps!".into());
        message_label.show();

        let mut button = self.base.get_node_as::<Button>("StartButton");
        button.show();
    }

    #[func]
    pub fn update_score(&self, score: i64) {
        let mut label = self.base.get_node_as::<Label>("ScoreLabel");

        label.set_text(score.to_string().into());
    }

    #[func]
    fn on_start_button_pressed(&mut self) {
        let mut button = self.base.get_node_as::<Button>("StartButton");
        button.hide();

        // Note: this works only because `start_game` is a deferred signal.
        // This method keeps a &mut Hud, and start_game calls Main::new_game(), which itself accesses this Hud
        // instance through Gd<Hud>::bind_mut(). It will try creating a 2nd &mut reference, and thus panic.
        // Deferring the signal is one option to work around it.
        self.base.emit_signal("start_game".into(), &[]);
    }

    #[func]
    fn on_message_timer_timeout(&self) {
        let mut message_label = self.base.get_node_as::<Label>("MessageLabel");
        message_label.hide()
    }
}

The GDScript version of Main defines a variable score and exports a PackedScene with the name mob_scene:

extends Node

@export var mob_scene: PackedScene
var score

# Called when the node enters the scene tree for the first time.
func _ready():
	pass

# Called every frame. 'delta' is the elapsed time since the previous frame.
func _process(delta):
	pass

func game_over():
	$ScoreTimer.stop()
	$MobTimer.stop()
	$HUD.show_game_over()
	$Music.stop()
	$DeathSound.play()

func new_game():
	score = 0
	$Player.start($StartPosition.position)
	$StartTimer.start()
	$HUD.update_score(score)
	$HUD.show_message("Get Ready")
	get_tree().call_group("mobs", "queue_free")
	$Music.play()

func _on_mob_timer_timeout():
	# Create a new instance of the Mob scene.
	var mob = mob_scene.instantiate()

	# Choose a random location on Path2D.
	var mob_spawn_location = get_node("MobPath/MobSpawnLocation")
	mob_spawn_location.progress_ratio = randf()

	# Set the mob's direction perpendicular to the path direction.
	var direction = mob_spawn_location.rotation + PI / 2

	# Set the mob's position to a random location.
	mob.position = mob_spawn_location.position

	# Add some randomness to the direction.
	direction += randf_range(-PI / 4, PI / 4)
	mob.rotation = direction

	# Choose the velocity for the mob.
	var velocity = Vector2(randf_range(150.0, 250.0), 0.0)
	mob.linear_velocity = velocity.rotated(direction)

	# Spawn the mob by adding it to the Main scene.
	add_child(mob)

func _on_score_timer_timeout():
	score += 1
	$HUD.update_score(score)

func _on_start_timer_timeout():
	$MobTimer.start()
	$ScoreTimer.start()

It's interesting how score gets translated to a Rust member of the struct Main, and in addition to mob_scene there are two optional pointers to the two instances of AudioStreamPlayer, music and death_sound:

use crate::hud::Hud;
use crate::mob;
use crate::player;

use godot::engine::{Marker2D, PathFollow2D, RigidBody2D, Timer};
use godot::prelude::*;

use rand::Rng as _;
use std::f32::consts::PI;

// Deriving GodotClass makes the class available to Godot
#[derive(GodotClass)]
#[class(base=Node)]
pub struct Main {
    mob_scene: Gd<PackedScene>,
    music: Option<Gd<AudioStreamPlayer>>,
    death_sound: Option<Gd<AudioStreamPlayer>>,
    score: i64,
    #[base]
    base: Base<Node>,
}

#[godot_api]
impl Main {
    #[func]
    fn game_over(&mut self) {
        let mut score_timer = self.base.get_node_as::<Timer>("ScoreTimer");
        let mut mob_timer = self.base.get_node_as::<Timer>("MobTimer");

        score_timer.stop();
        mob_timer.stop();

        let mut hud = self.base.get_node_as::<Hud>("Hud");
        hud.bind_mut().show_game_over();

        self.music().stop();
        self.death_sound().play();
    }

    #[func]
    pub fn new_game(&mut self) {
        let start_position = self.base.get_node_as::<Marker2D>("StartPosition");
        let mut player = self.base.get_node_as::<player::Player>("Player");
        let mut start_timer = self.base.get_node_as::<Timer>("StartTimer");

        self.score = 0;

        player.bind_mut().start(start_position.get_position());
        start_timer.start();

        let mut hud = self.base.get_node_as::<Hud>("Hud");
        let hud = hud.bind_mut();
        hud.update_score(self.score);
        hud.show_message("Get Ready".into());

        self.music().play();
    }

    #[func]
    fn on_start_timer_timeout(&self) {
        let mut mob_timer = self.base.get_node_as::<Timer>("MobTimer");
        let mut score_timer = self.base.get_node_as::<Timer>("ScoreTimer");
        mob_timer.start();
        score_timer.start();
    }

    #[func]
    fn on_score_timer_timeout(&mut self) {
        self.score += 1;

        let mut hud = self.base.get_node_as::<Hud>("Hud");
        hud.bind_mut().update_score(self.score);
    }

    #[func]
    fn on_mob_timer_timeout(&mut self) {
        let mut mob_spawn_location = self
            .base
            .get_node_as::<PathFollow2D>("MobPath/MobSpawnLocation");

        let mut mob_scene = self.mob_scene.instantiate_as::<RigidBody2D>();

        let mut rng = rand::thread_rng();
        let progress = rng.gen_range(u32::MIN..u32::MAX);

        mob_spawn_location.set_progress(progress as f32);
        mob_scene.set_position(mob_spawn_location.get_position());

        let mut direction = mob_spawn_location.get_rotation() + PI / 2.0;
        direction += rng.gen_range(-PI / 4.0..PI / 4.0);

        mob_scene.set_rotation(direction);

        self.base.add_child(mob_scene.share().upcast());

        let mut mob = mob_scene.cast::<mob::Mob>();
        let range = {
            // Local scope to bind `mob` user object
            let mob = mob.bind();
            rng.gen_range(mob.min_speed..mob.max_speed)
        };

        mob.set_linear_velocity(Vector2::new(range, 0.0));
        let lin_vel = mob.get_linear_velocity().rotated(real::from_f32(direction));
        mob.set_linear_velocity(lin_vel);

        let mut hud = self.base.get_node_as::<Hud>("Hud");
        hud.connect(
            "start_game".into(),
            Callable::from_object_method(mob, "on_start_game"),
        );
    }

    fn music(&mut self) -> &mut AudioStreamPlayer {
        self.music.as_deref_mut().unwrap()
    }

    fn death_sound(&mut self) -> &mut AudioStreamPlayer {
        self.death_sound.as_deref_mut().unwrap()
    }
}

#[godot_api]
impl NodeVirtual for Main {
    fn init(base: Base<Node>) -> Self {
        Main {
            mob_scene: PackedScene::new(),
            score: 0,
            base,
            music: None,
            death_sound: None,
        }
    }

    fn ready(&mut self) {
        // Note: this is downcast during load() -- completely type-safe thanks to type inference!
        // If the resource does not exist or has an incompatible type, this panics.
        // There is also try_load() if you want to check whether loading succeeded.
        self.mob_scene = load("res://Mob.tscn");
        self.music = Some(self.base.get_node_as("Music"));
        self.death_sound = Some(self.base.get_node_as("DeathSound"));
    }
}

The GDScript can just access $Music and $DeathSound to play or stop playing the music. The Rust version seems to gain access at the right time, during the call of Main::ready, even though the GDScript equivalent just calls pass. Later we need a &mut (mutable reference) to AudioStreamPlayer to call play() or stop(), and therefore the Main struct provides functions music() and death_sound() to provide such a reference.

Here the GDScript version for Player:

extends Area2D
signal hit

@export var speed = 400 # How fast the player will move (pixels/sec).
var screen_size # Size of the game window.

# Called when the node enters the scene tree for the first time.
func _ready():
	screen_size = get_viewport_rect().size
	hide()

# Called every frame. 'delta' is the elapsed time since the previous frame.
func _process(delta):
	var velocity = Vector2.ZERO # The player's movement vector.
	if Input.is_action_pressed("move_right"):
		velocity.x += 1
	if Input.is_action_pressed("move_left"):
		velocity.x -= 1
	if Input.is_action_pressed("move_down"):
		velocity.y += 1
	if Input.is_action_pressed("move_up"):
		velocity.y -= 1

	if velocity.length() > 0:
		velocity = velocity.normalized() * speed
		$AnimatedSprite2D.play()
	else:
		$AnimatedSprite2D.stop()
	position += velocity * delta
	position = position.clamp(Vector2.ZERO, screen_size)

	if velocity.x != 0:

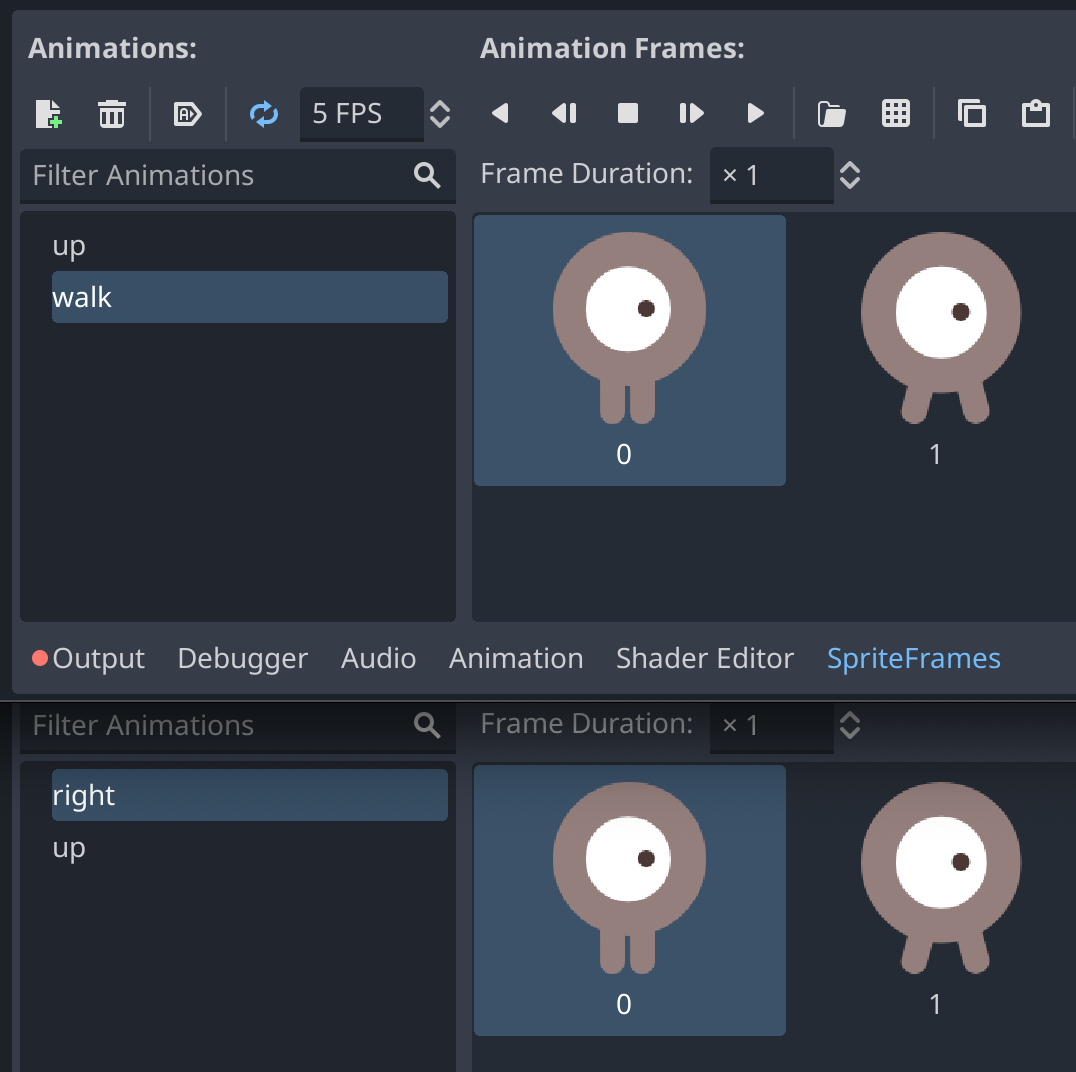

		$AnimatedSprite2D.animation = "walk"
		$AnimatedSprite2D.flip_v = false
		# See the note below about boolean assignment.
		$AnimatedSprite2D.flip_h = velocity.x < 0
	elif velocity.y != 0:
		$AnimatedSprite2D.animation = "up"
		$AnimatedSprite2D.flip_v = velocity.y > 0


func _on_body_entered(body):
	hide() # Player disappears after being hit.
	hit.emit()
	# Must be deferred as we can't change physics properties on a physics callback.
	$CollisionShape2D.set_deferred("disabled", true)

func start(pos):
	position = pos
	show()
	$CollisionShape2D.disabled = false

Verse the Rust version:

use godot::engine::{AnimatedSprite2D, Area2D, Area2DVirtual, CollisionShape2D, PhysicsBody2D};
use godot::prelude::*;

#[derive(GodotClass)]
#[class(base=Area2D)]
pub struct Player {
    speed: real,
    screen_size: Vector2,

    #[base]
    base: Base<Area2D>,
}

#[godot_api]
impl Player {
    #[signal]
    fn hit();

    #[func]
    fn on_player_body_entered(&mut self, _body: Gd<PhysicsBody2D>) {
        self.base.hide();
        self.base.emit_signal("hit".into(), &[]);

        let mut collision_shape = self
            .base
            .get_node_as::<CollisionShape2D>("CollisionShape2D");

        collision_shape.set_deferred("disabled".into(), true.to_variant());
    }

    #[func]
    pub fn start(&mut self, pos: Vector2) {
        self.base.set_global_position(pos);
        self.base.show();

        let mut collision_shape = self
            .base
            .get_node_as::<CollisionShape2D>("CollisionShape2D");

        collision_shape.set_disabled(false);
    }
}

#[godot_api]
impl Area2DVirtual for Player {
    fn init(base: Base<Area2D>) -> Self {
        Player {
            speed: 400.0,
            screen_size: Vector2::new(0.0, 0.0),
            base,
        }
    }

    fn ready(&mut self) {
        let viewport = self.base.get_viewport_rect();
        self.screen_size = viewport.size;
        self.base.hide();
    }

    fn process(&mut self, delta: f64) {
        let mut animated_sprite = self
            .base
            .get_node_as::<AnimatedSprite2D>("AnimatedSprite2D");

        let mut velocity = Vector2::new(0.0, 0.0);

        // Note: exact=false by default, in Rust we have to provide it explicitly
        let input = Input::singleton();
        if input.is_action_pressed("move_right".into()) {
            velocity += Vector2::RIGHT;
        }
        if input.is_action_pressed("move_left".into()) {
            velocity += Vector2::LEFT;
        }
        if input.is_action_pressed("move_down".into()) {
            velocity += Vector2::DOWN;
        }
        if input.is_action_pressed("move_up".into()) {
            velocity += Vector2::UP;
        }

        if velocity.length() > 0.0 {
            velocity = velocity.normalized() * self.speed;

            let animation;

            if velocity.x != 0.0 {
                animation = "right";

                animated_sprite.set_flip_v(false);
                animated_sprite.set_flip_h(velocity.x < 0.0)
            } else {
                animation = "up";

                animated_sprite.set_flip_v(velocity.y > 0.0)
            }

            animated_sprite.play_ex().name(animation.into()).done();
        } else {
            animated_sprite.stop();
        }

        let change = velocity * real::from_f64(delta);
        let position = self.base.get_global_position() + change;
        let position = Vector2::new(
            position.x.clamp(0.0, self.screen_size.x),
            position.y.clamp(0.0, self.screen_size.y),
        );
        self.base.set_global_position(position);
    }
}

One thing worth mentioning here is that I noticed a mismatch between the two Godot 4 scenes (one using GDScript, the other one Rust):

This explains why the GDScript version uses up and walk whereas the Rust version uses up and right.

Back to top
