Blender to Arnold.

08 Jan 2020

Blender

For my rendering research I create test scenes via Blender. At FMX 2014 I talked about Comparing Global Illumination (GI) Renderers. In the same year the German magazine Digital Production published an interview with me about that, and at the Blender conference I gave another talk, which still can be watched on YouTube.

A lot of things changed since then, but the main idea was to keep test scenes created with free software (Blender), store no renderer specific materials or shaders within the scene, and use Python to export to renderer specific scene descriptions using some heuristics to translate Blender's material settings to the renderer specific shaders/materials.

The last three years I wrote a Rust based implementation of a physically based renderer, based on the book (and C++ code) provided by Matt Pharr, Wenzel Jakob, and Greg Humphreys.

In the future I will keep my test scenes in the Blender cloud, but also make them available on my web page for download. It is hard to get access (or publish) production scenes. The Blender cloud is one way to get such data, but also Disney started to publish some data sets.

This year I will probably start working on some USD tools, but until I can use those, I will restrict myself to store Blender files, parse them directly, and render with only two renderers, rs-pbrt and Arnold.

rs-pbrt

Book title scene
rendered by rs-pbrt.

The image above is from the cover of the book, but was rendered by rs-pbrt. This landscape scene is not available as a Blender scene, but there is a git repository, where I collect those scenes, some in pbrt, some in blend file format.

As described in the v0.7.0 release notes, there are three executables, and one can be used to render Blender files directly:

> ./target/release/examples/parse_blend_file --help
pbrt 0.7.3
Parse a Blender scene file and render it.

USAGE:
    parse_blend_file [OPTIONS] <path>

FLAGS:
    -h, --help       Prints help information
    -V, --version    Prints version information

OPTIONS:
        --bootstrap_samples <bootstrap-samples>        bootstrap samples ...
    -c, --camera_name <camera-name>                    camera name
        --chains <chains>                              number of Markov chains
    -i, --integrator <integrator>                      ao, directlighting, ...
    -l, --light_scale <light-scale>                    global light scaling ...
    -m, --max_depth <max-depth>                        max length of a ...
        --mutations_per_pixel <mutations-per-pixel>    number of path mutations
    -s, --samples <samples>                            pixel samples ...
        --sigma <sigma>                                perturbation deviation
        --step_probability <step-probability>          prob of discarding ...
        --write_frequency <write-frequency>            frequency to write ...

ARGS:
    <path>    The path to the file to read

Most importantly you can switch the rendering algorithm between Ambient Occlusion, Direct Lighting, Whitted’s Ray-Tracing, (Unidirectional) Path Tracing, Bidirectional Path Tracing (BDPT), Metropolis Light Transport (MLT), Stochastic Progressive Photon Mapping (SPPM), and Path Tracing (Participating Media).

Arnold

Barbershop scene
rendered via btoa v0.1.0 and Arnold 6.0.1.0.

Even though there is an executable shipping with rs-pbrt to render Arnold's scene description files (.ass) directly (via rs-pbrt), it would be nice to compare both renderers by rendering Blender files. For Arnold I decided to translate the .blend files into .ass files first (via a Rust program called btoa), give you the option to store the .ass files in binary format (if you want), and render them from there using Arnold's kick command.

# .blend to .ass translation (output btoa.ass)
> ~/git/codeberg/rs_blender/btoa/target/release/btoa barbershop_v2_79.blend
BLENDER-v279
...
445218280 bytes read
2048x858 [50%] = 1024x429
# use kick to create binary version (btoa_bin.ass)
> kick -resave btoa_bin.ass btoa.ass
00:00:00    65MB         | log started Thu Jan  9 14:06:20 2020
...
00:00:23   152MB         | Arnold shutdown
# use kick with command line options to render image above (arnold.png)
> kick -dp -dw -v 3 -bs 32 -bc hilbert -as 4 btoa_bin.ass -o arnold.png -of png
00:00:00    65MB         | log started Thu Jan  9 14:08:59 2020
...
00:00:41   173MB         | Arnold shutdown
# find more command line options
> kick -h
Arnold 6.0.1.0 [25372a4c] linux clang-5.0.0 oiio-2.1.4 ... 2019/12/04 07:45:07
Usage:  kick [options] ...
...

Here is another example, which can be found in the same repository:

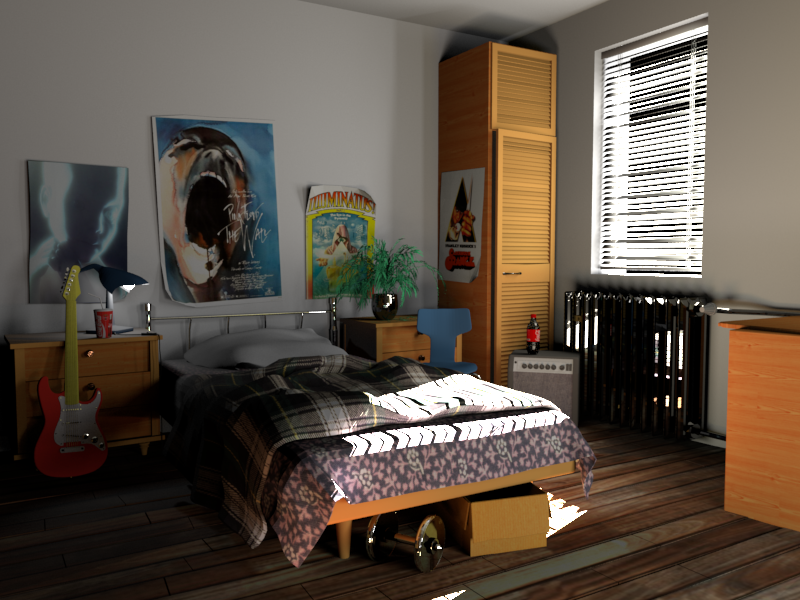

Bedroom scene rendered via btoa v0.1.0 and Arnold 6.0.1.0.

# creates btoa.ass
> btoa --light_scale 5.0 bedroom_v2_79.blend
# renders arnold.png
> kick -as 4 -dif 1 -ds 64 -spc 1 -ss 2 -trm 4 -ts 2 btoa.ass -o arnold.png

Disclaimer
